Trane Fault Codes Explained for Glendale Homes
Short version: Glendale Trane HVAC decodes Trane fault codes for homeowners across Glendale, CA (ZIP 91201-91208), so call (213) 772-2088 or book online and we will tell you what it means. Furnaces blink an LED flash code (2 through 9), while variable-speed XV systems show plain-language alerts on the XL824 or XL850 thermostat.
The essentials

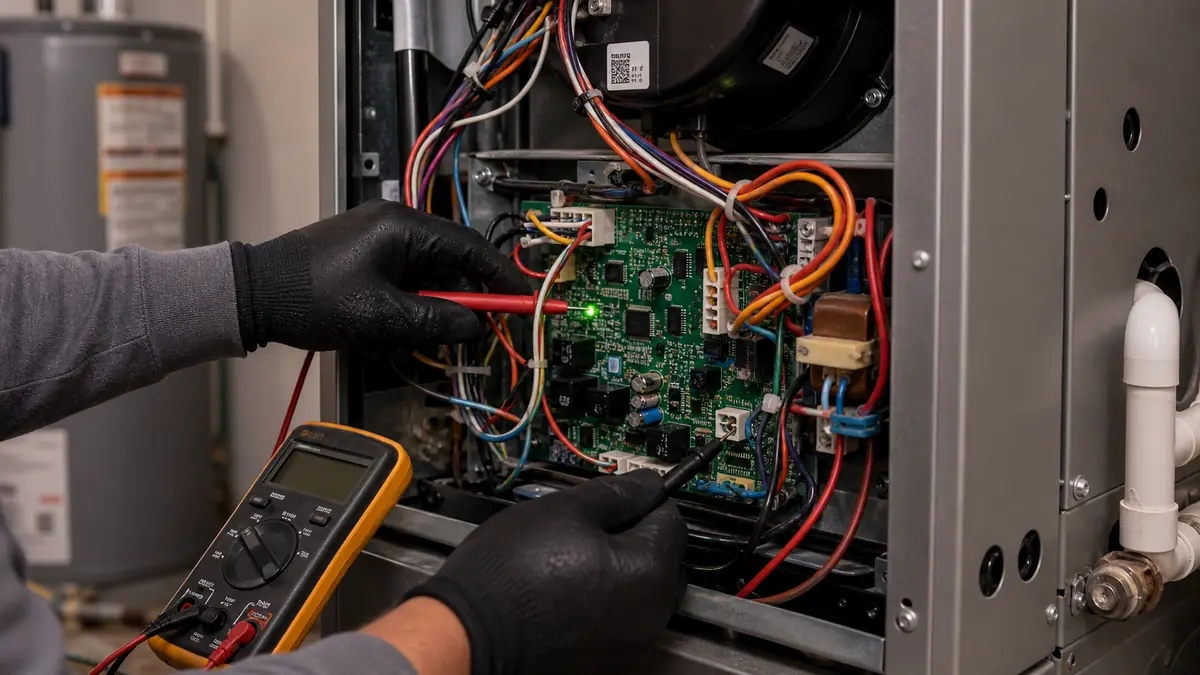

- Furnace codes are LED flash patterns on the integrated furnace control.
- 2 = system lockout; 3 = pressure switch; 4 = open high-limit (low airflow).
- 5 = unexpected flame; 6 = reversed polarity/grounding; 7 = gas valve circuit.
- 8 = low flame sense; 9 = igniter circuit. Slow flash = normal standby.
- Communicating XV systems show plain-language alerts on XL824/XL850 and the app.
- Non-communicating XR/XL air conditioners have no code (electrical diagnosis).
- Control/inverter board repairs run roughly $400 to $2,000.
How do Trane systems report a fault?
Trane uses two different diagnostic languages depending on the equipment. Gas furnaces and air handlers carry an integrated furnace control with a small status LED that blinks a flash code; you count the flashes to identify the fault category. Communicating variable-speed systems - the XV18 and XV20i with a ComfortLink II XL824 or XL850 thermostat - skip the blink code and display a plain-language alert right on the touchscreen, also pushed to the Trane Home app. Non-communicating XR and XL air conditioners have no code at all; they use straightforward relay logic and are diagnosed with a meter.
What do the furnace flash codes mean?
The flash code tells you the system, not the exact failed part - it narrows the search. A slow, steady blink with no call for heat is normal. A fast blink during a heat call is also normal. The fault codes start at two flashes. Here is what the common ones point to and the first thing we check.
| Flashes | Meaning | First check |
|---|---|---|
| 2 | System lockout (ignition retries exceeded) | Igniter, flame sensor, gas supply |
| 3 | Vent / pressure switch error | Pressure switch, inducer, blocked flue |
| 4 | Open high-temperature limit | Airflow: filter, return, ductwork |
| 5 | Flame sensed when none expected | Gas valve leak-by, control board |
| 6 | Reversed polarity / poor grounding | Line wiring, ground, rollout check |
| 7 | Gas valve circuit error | Gas valve, wiring, control |
| 8 | Low flame-sense signal | Clean / replace flame sensor |
| 9 | Igniter circuit / 24VAC common | Hot-surface igniter, wiring |
What do ComfortLink II alerts look like?
On a variable-speed XV system, the XL824 or XL850 writes the fault in words - for example, a loss of communication with the outdoor unit, which means the 4-wire ComfortLink II bus has a break, a failed communicating board, or low line voltage to the condenser. Inverter and outdoor-unit alerts appear the same way. This plain-language readout is a real advantage: it narrows the diagnosis before the tech arrives, which is why we like communicating controls on foothill homes in El Miradero and Glenoaks Canyon. See our ComfortLink II controls page for the communication-fault flow.
What can I safely do before calling about a code?
For a few codes there is a safe homeowner step, and for the rest the right move is to read the code and call. If a furnace flashes 4 (open high-limit), it is almost always restricted airflow - replace a clogged filter, make sure returns and registers are clear, and the furnace will often recover on the next cycle; if 4 returns, the restriction is real and needs a tech. A 3 (pressure switch) can sometimes follow a blocked outdoor flue termination, worth a visual check from the ground. Beyond that, leave the diagnosis to the meter: do not open the gas valve circuit, bridge a safety switch, or repeatedly reset a furnace that keeps locking out, because the lockout is protecting you. Codes 2, 5, 6, 7, 8, and 9 all point at ignition, flame, gas-valve, or polarity faults that need instruments and combustion-safety training. The safe rule is simple - read and note the flash count or the XL850 alert text, then call with it; that one number shortens the diagnosis and lowers your cost.
Which codes should I act on immediately?
A 4-flash high-limit that keeps returning is not just an annoyance - the repeated overheating that triggers it is what cracks heat exchangers over time, so the underlying airflow restriction needs a real fix, not a reset. A 6-flash polarity or grounding indication, or any sign of a rollout or combustion issue, gets the furnace shut down until we inspect it. For cooling-side communication faults on an XV system, the unit may run in a reduced mode or stop entirely. When in doubt, leave it off and call - our emergency service page covers urgent situations.
Common questions
Where do I read a fault code on my Trane system?
On a gas furnace, look for a small status LED behind the lower access panel that blinks a pattern - count the flashes. On a variable-speed XV system with a ComfortLink II XL824 or XL850 thermostat, the fault appears as plain-language text on the touchscreen and in the Trane Home app. Non-communicating XR and XL air conditioners have no code and are diagnosed electrically.
My Trane furnace is flashing 4 - what is it telling me?
Four flashes is an open high-temperature limit: the furnace overheated and shut off on its safety. The usual cause is restricted airflow - a clogged filter, a blocked return, or undersized ductwork. In older Glendale homes with tight 1920s returns this is common. Replace the filter; if it recurs, the airflow restriction needs a real fix before it cracks the heat exchanger.
Is a 6-flash code dangerous?
A 6-flash on a Trane furnace control indicates reversed line-voltage polarity or a grounding problem, and it warrants a careful look because it can accompany conditions that affect safe combustion. We check polarity and grounding, and inspect for any rollout or heat-exchanger issue. Anything pointing at combustion products entering the airstream gets the furnace shut down.
Why doesn't my Trane AC show any code at all?
Because most Trane XR and XL air conditioners are non-communicating - they use simple 24V relay logic with no diagnostic display. That is normal, not a defect. We diagnose them with a meter: capacitance, contactor condition, amp draw, and refrigerant pressures. Only the communicating XV systems with an XL824 or XL850 surface plain-language alerts.
