Trane AC Installation in Glendale
Short version: Call Glendale Trane HVAC at (213) 772-2088 or book online for a right-sized Trane AC installation across Glendale, CA - from Downtown Glendale (91205) to Glenoaks Canyon (91206). We size off a Manual J load, confirm refrigerant charge and airflow, and handle the Title-24 permit and HERS test; a central replacement runs $5,000 to $12,000.
The essentials
- Central AC replacement (condenser + coil) typically $5,000 to $12,000 (2026 SoCal).
- Heat pump install (central, ducted) typically $6,000 to $16,000; rebates may offset.
- New ductwork, where needed, typically $1,900 to $6,000.
- Trane tiers: XR single-stage, XL two-stage, XV18, XV20i variable-speed (up to ~20.5 SEER2).
- Federal Southwest-region floor: 14.3 SEER2 on sub-45k BTU split ACs.
- Includes Glendale mechanical permit and Title-24 HERS verification.
- Serving all eight Glendale ZIPs, 91201-91208.
How do you size a Trane system for a Glendale home?
Sizing begins with a Manual J load calculation, never a guess off the old unit's tonnage. We measure conditioned square footage, insulation, window area and orientation, and air infiltration. Many of Glendale's older Spanish revival and Craftsman homes are still running oversized condensers set decades ago; an oversized unit cools in short bursts, never pulls humidity, and cycles its compressor and capacitor to an early grave. We size to the real load, which frequently means a smaller, better-matched Trane than the one being removed.
How does a Trane install day actually go?
A clean changeout follows a fixed sequence, and commissioning is where a good install separates from a box-swap.
- Recover and remove. We recover the old refrigerant to EPA standards, disconnect, and haul off the old condenser and coil.

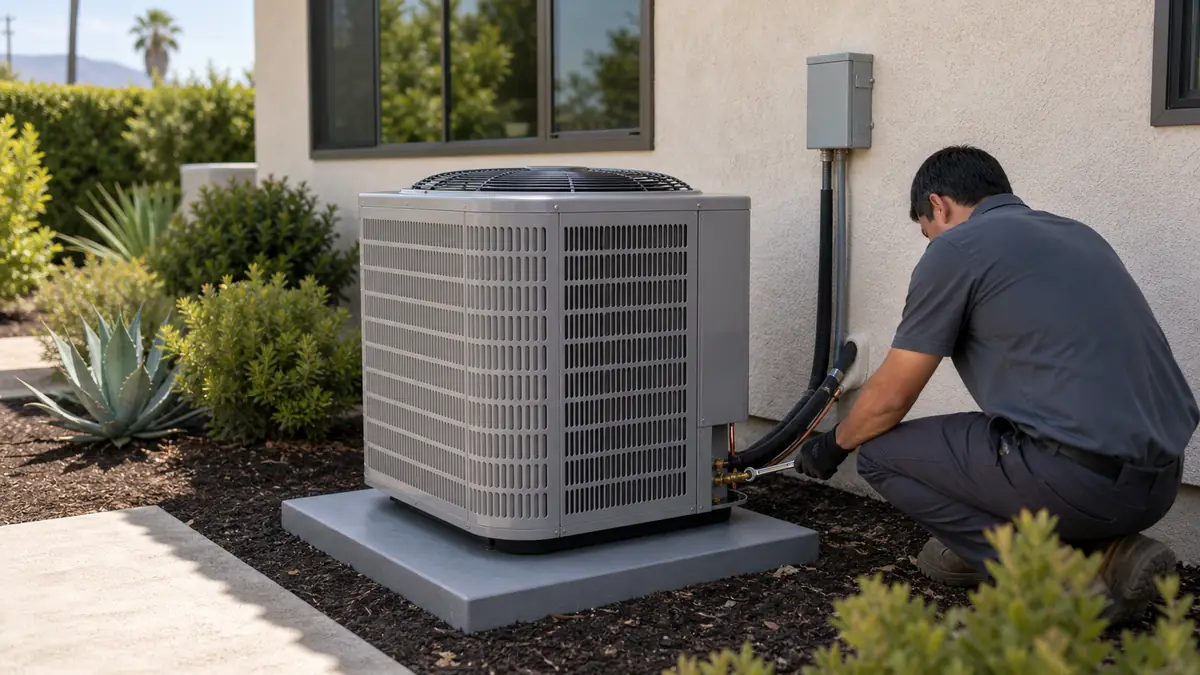

- Set and braze. The new Trane condenser goes on a level pad or stand; we braze the line set under flowing dry nitrogen so the inside of the copper stays clean, and fit a matched evaporator coil and TXV.
- Evacuate. We pull a deep vacuum and hold it with a micron gauge to confirm the system is dry and leak-free before any refrigerant goes in - skipping this is how installers leave moisture that later kills a TXV.
- Charge and wire. We weigh in the factory R-410A charge, then land the line-voltage and 24V (or 4-wire ComfortLink II) connections and set up the XL824/XL850 on a variable-speed system.
- Commission and verify. We read superheat, subcooling, supply-air temperature split, and static pressure, then document the refrigerant-charge and airflow verification Title-24 requires and book the HERS rater if ducts were touched.
Which Trane should go in - XR, XL, or XV?
The tier follows the home and the climate exposure. A single-stage XR13-XR17 is a durable, affordable workhorse for a flatland home near Brand Boulevard with a straightforward load. A two-stage XL pairs efficiency with quieter, steadier operation. The variable-speed XV18 (4TTV8/5TTV8) and XV20i (4TTV0/5TTV0) - Climatuff variable-speed compressors with all-aluminum Spine Fin coils and ComfortLink II controls, reaching up to about 20.5 SEER2 - shine in foothill homes in Glenoaks Canyon and El Miradero that hold heat into the evening, because they run long at low capacity instead of short-cycling. Our Trane buying guide for Glendale compares the tiers in detail.
| Home / load | Trane tier | Typical installed range |
|---|---|---|
| Flatland bungalow, simple load | XR16 single-stage AC | $5,000 - $8,500 |
| Mid-size, comfort upgrade | XL two-stage AC | $7,000 - $10,500 |
| Foothill home, holds evening heat | XV18 / XV20i variable-speed | $9,000 - $12,000 |
| Gas-to-electric conversion | 4TWV heat pump + air handler | $6,000 - $16,000 |
| Failed ducts on a changeout | Add ductwork to any tier | +$1,900 - $6,000 |
What does Title-24 require on a Glendale install?
California's energy code (Title-24, Part 6) layers requirements over the federal SEER2 floors. For a new or replacement split system in Climate Zone 9, you generally need refrigerant-charge and airflow verification, and when ductwork is altered or replaced, duct-leakage testing with HERS field verification by a third-party rater. The City of Glendale requires a mechanical permit for the changeout. We pull the permit and line up the HERS rater so the job clears inspection instead of becoming your problem once the truck leaves.
Can you reuse the existing ducts?
Sometimes. Many Glendale homes have serviceable trunk-and-branch duct that just needs sealing and a properly sized return added. But 1920s flatland homes in Rossmoyne and Adams Hill frequently have undersized returns that strangle a modern high-efficiency coil - a SEER2 system on bad ducts never delivers its rated efficiency. We measure static pressure and duct leakage before committing, and we tell you honestly whether your ducts will let the new Trane perform.
What does a Glendale AC install cost, and what drives it?
A straight central AC replacement (matched condenser plus coil) runs about $5,000 to $12,000 in 2026 SoCal, and the spread comes from real variables, not markup. Tonnage from the Manual J sets the base. Tier moves it next: a single-stage XR16 sits low, an XV20i variable-speed sits high. A failed or mismatched coil adds the coil-and-TXV cost. Undersized returns that need rework, or full duct replacement, add $1,900 to $6,000. A gas-to-heat-pump conversion (a 4TWV heat pump and air handler) runs $6,000 to $16,000 because it adds the air handler and an electrical-panel check. Foothill access in Glenoaks Canyon - crane or hand-carry to a hillside pad - can add labor. We itemize every one of these before you sign.
What about rebates on a heat pump conversion?
Glendale Water and Power along with statewide programs have offered heat-pump incentives, and LADWP-area programs have reached up to roughly $2,500 per ton on qualifying high-efficiency systems. One key caveat: the federal 25C tax credit was repealed effective December 31, 2025, so a 2026 install earns no federal heat-pump credit. Program funding cycles in phases, and some pots were reported reserved in early 2026 - always confirm current rebate amounts and status before you count on them. Our SEER2 and rebates guide lays out the details with honest caveats.
Common questions
How big an AC does my Glendale home actually need?
A Manual J load calculation answers that, not a rule of thumb. We take square footage, insulation, window area and orientation, and air infiltration. Oversizing snags a lot of older Glendale homes - an outsized condenser short-cycles, never pulls humidity, and dies sooner. We size to the real load, then match the Trane tier to that number.
Will a new AC install in Glendale need a permit and HERS test?
Usually, yes. A condenser or system changeout requires a City of Glendale mechanical permit, and California Title-24 generally wants refrigerant-charge and airflow verification, plus HERS duct-leakage testing any time ductwork is altered. Pulling the permit and booking the HERS rater is part of our job.
How long does a Trane system replacement take?
A straight condenser-and-coil changeout on existing, sound ductwork is typically one day. Adding returns, replacing a furnace or air handler, or converting to a heat pump can run two to three days. Foothill homes in Glenoaks Canyon sometimes add time for crane or access logistics.
Should I install a variable-speed XV20i or a single-stage XR?
It depends on the home. Flatland homes near Downtown Glendale with simple loads do fine on a single-stage XR16. Foothill homes in El Miradero that hold evening heat benefit from an XV18 or XV20i that modulates down and runs long at low capacity for steadier temperatures and lower bills. Our buying guide walks through the tradeoffs.
Why does the new AC need to match the indoor coil?
A condenser and evaporator coil are engineered as a matched pair (an AHRI-rated combination), and the rated SEER2 only holds when they match. Dropping a new XR16 or XV20i condenser onto a mismatched older coil costs efficiency, can starve or flood the metering device, and may void the Trane warranty. We replace or verify the coil and TXV as part of the changeout, not as an afterthought.
Do you remove and dispose of the old system?
Yes. We recover the old refrigerant per EPA rules, haul off the condenser, coil, and any failed air handler, and recycle the metal. R-22 systems from older Glendale homes get handled correctly rather than vented. Disposal is included in the install quote - no surprise line item after the fact.
Can you install over two days without leaving us without AC overnight?
On a multi-day job we sequence the work so the home is not stranded in a heat wave longer than necessary - typically the old system runs until the new condenser and coil are ready to commission. For foothill homes in Glenoaks Canyon where access slows the schedule, we plan the timeline with you up front so you know exactly which day cooling comes back.
